Description:

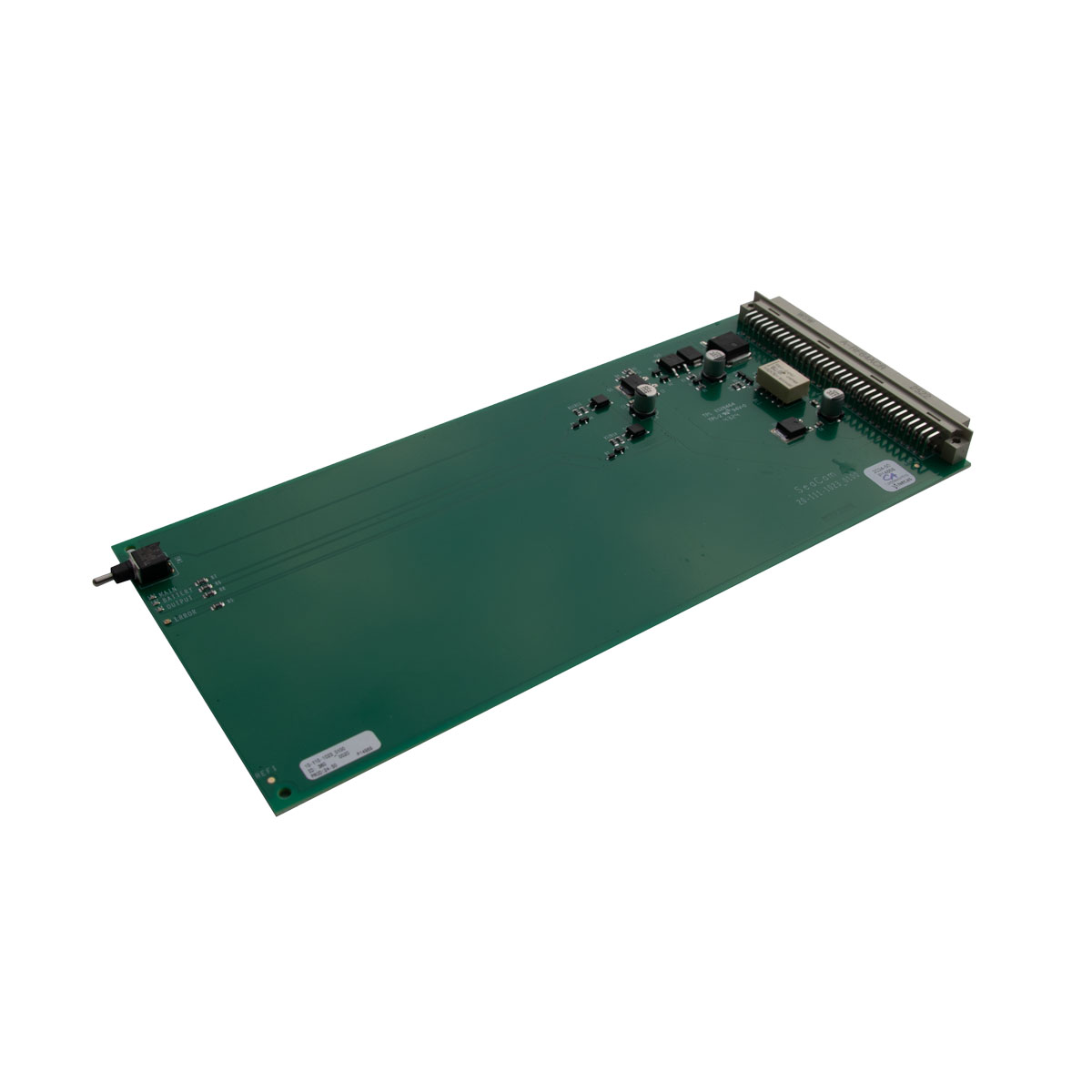

PSU3 is the power supply for the SeaCom 1000, SeaCom 2100 and SeaCom 19'' systems.
It is NOT a replacement card for the PSU2, and AEXT8 and FIO2 cards are not supported by the PSU3.
It is to be used when building exchangers based on the FIO4-n and the AEXT16-nn cards only.
The main purpose of this card is to take the 2 x 24V DC power supply to the backplane of the SeaCom exchangers.
The PSU3 has the on/off switch of the system.
Specifications:
- 18-32V DC input main and battery
- Output to backplane 18-32V DC
